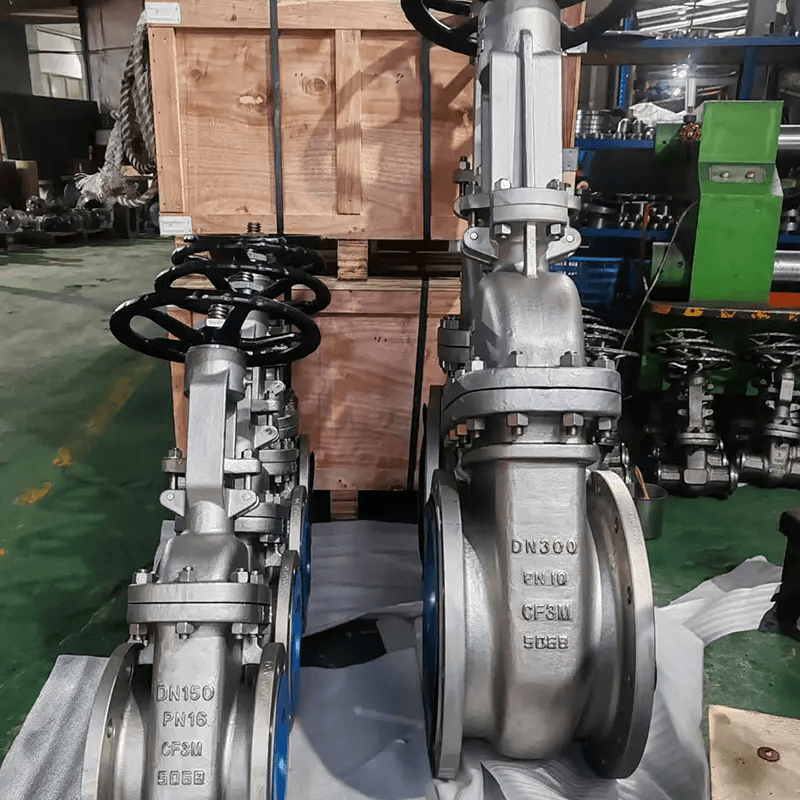

Cast Steel ANSI Gate Valve

Cast Steel ANSI Gate Valve

Kunjian Tech’s Cast Steel ANSI Gate Valves are engineered for heavy-duty industrial applications requiring reliable shut-off and minimal pressure drop. Designed and manufactured in strict accordance with API 600 and ASME B16.34 standards, these valves offer superior performance in high-pressure and high-temperature environments, including oil and gas, petrochemical, and power generation sectors.

Key Technical Features:

• Fully compliant with API 600 (Design), ASME B16.10 (Face-to-Face), and ASME B16.5 (Flange Dimensions).
• Features a Bolted Bonnet (BB) and Outside Screw and Yoke (OS&Y) design for easy maintenance and visible stem positioning.
• Hardfaced, ground, and lapped seat faces ensure a mirror finish for bubble-tight sealing and extended service life.
• The one-piece flexible wedge compensates for seat face distortions and thermal expansion, preventing the valve from sticking in the closed position.
• Standard bodies are cast from ASTM A216 WCB carbon steel, with 13% Cr trim for excellent wear and corrosion resistance.

Specifications:

• Size Range: 2” to 48” (DN50 – DN1200)
• Pressure Ratings: ANSI Class 150, 300, 600, 900, 1500, and 2500
• End Connections: Raised Face (RF), Ring Type Joint (RTJ), and Butt Weld (BW)
• Temperature Range: -29°C to 425°C (standard carbon steel)

Why Choose Kunjian Tech?

As a dedicated B2B supplier, Kunjian Tech ensures every valve undergoes rigorous API 598 testing for shell and seat integrity. Our cast steel gate valves are built to minimize turbulence and erosion, providing a cost-effective, long-term solution for critical flow control pipelines.
